Out of bounds vulnerability
An out-of-bounds vulnerability is a security bug in software that occurs when a program tries to read or write data to a memory that falls outside the designated boundaries of a array or buffer.
Out of Bounds Writes
Happens when a program writes outside the designated boundaries of the array or buffer. This security vulnerability can lead the following:
- Arbitrary Code Execution
- Denial of Service
- Data Corruption
- Simple Program Crash
Exploiting Out-of-Bounds Write
Consider the following code snippet
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
void wunsafe() {
int x;
char names[5][32] = {0};
int index;
char buffer[32];
for (int i = 0; i < sizeof(names)/sizeof(names[0]);i++) {
memset(buffer, 0 , sizeof(buffer));
printf("Index to store name: ");
fflush(stdout);
fgets(buffer, sizeof(buffer) -1 , stdin);
index = atoi(buffer);
memset(buffer, 0, sizeof(buffer));
printf("Enter Name: ");
fflush(stdout);
fgets(buffer, sizeof(buffer) -1, stdin);
buffer[strcspn(buffer, "\n")] = 0;
strncpy(names[index], buffer, sizeof(buffer));
}
// print all names
puts("Names");
for (int i = 0; i < sizeof(names)/sizeof(names[0]);i++) {
printf("%d. %s \n", i+1, names[i]);
}
if (x == 0xdeadbeef) {
puts("Here is a shell");
win();
} else {
puts("You lose");
}
}
compile with gcc -O0 -fno-stack-protector -fPIE -no-pie -z execstack -m32 oob.c

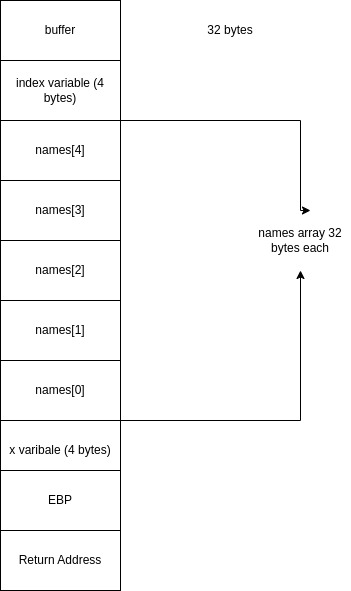

Stack before input
Mitigation
Out of Bounds Reads
Happens when a program reads data from a memory location that is beyond the end of an array. This is a information disclosure vulnerability as it can lead to attackers reading sensitive information.
Exploiting Out-of-Bounds Read
Consider the following code snippet
1
2
3
4
5
6
char password[32] = "supersecretpassword";
char names[5][32] = {"john", "kevin", "Neo", "Tim", "Mia"};
int index;
puts("Enter Index: ");
scanf("%d", &index);
printf("Name: %s\n", names[index]);
Since the user controls the what index to print out the user can leak the password by entering a index greater than 4.
1
2
3
4
./a.out
Enter Index:
5
Name: supersecretpassword
if i enter 5 as index I get the password.

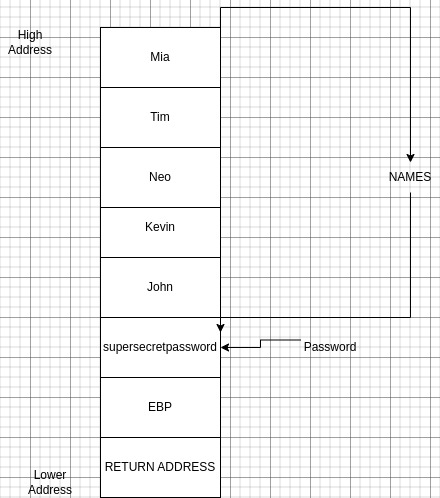

Stack layout
Mitigation
To mitigate this vulnerability the program should check that the index (user input) is within the bounds of the array.
Correct way to implement
1
2
3
4
5
6
7
8
9
10
char password[32] = "supersecretpassword";
char names[5][32] = {"john", "kevin", "Neo", "Tim", "Mia"};
int index;
puts("Enter Index: ");
scanf("%d", &index);
if (index > 4 || index < 0) {
puts("Invalid Index");
return;
}
printf("Name: %s\n", names[index]);
